PRODUCTS
Products
We convert and sell functional resin tapes in UHMW, PTFE and PTFE-impregnated glass cloth. Orders start at one roll and widths can be set in 1 mm steps.
English inquiries are handled by email.
- Products
- 11
- Part numbers
- 24
- Standard widths
- 13–1000 mm
- Custom slitting
- From 4 mm, 1 mm steps
PRODUCTS
All products
MAIN PRODUCT / PO Tape
PO Tape
UHMW sliding and wear-resistant tape for conveyor guide rails and the sliding parts of machinery. Slit to any width from 4 mm in 1 mm steps, minimum order one roll.
- Base
- UHMW
- Total thickness
- 0.114–0.584 mm
- Heat resistance
- 107 °C
- Standard widths
- 19–889 mm
SK Tape
PTFE-backed tape coated with an acrylic adhesive for release applications. Heat resistance is 176 °C.
RU Tape
Commonly known as Rulon tape. More wear-resistant than standard PTFE and self-lubricating, so it slides more freely.
HS Tape
Heat-resistant, non-stick tape: glass fiber impregnated with PTFE, coated with a silicone adhesive.
HG Tape
The high-grade version of HS Tape: a three-layer heat-resistant construction that laminates PTFE cast film onto PTFE-impregnated glass cloth.
HG-10S
HG Tape coated with a special silicone adhesive that withstands 300 °C for brief periods.
CD Tape
PTFE-based tape with an antistatic function. The non-stick surface and the suppression of static electricity keep contamination and sticking away.

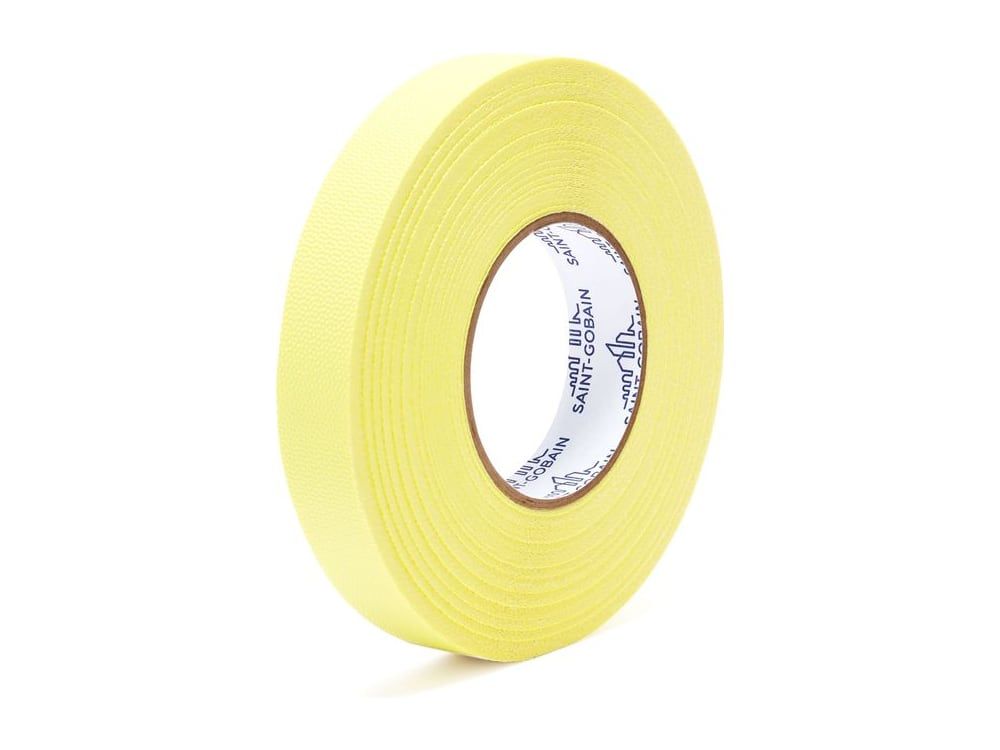

2975-8R
Single-sided adhesive tape on a glass cloth and silicone rubber backing, used to protect parts in high-temperature processes such as plasma spraying.
FS Sheet
The non-adhesive version of HS Tape: PTFE-impregnated glass cloth supplied as a plain sheet, for laying down or sandwiching rather than sticking.

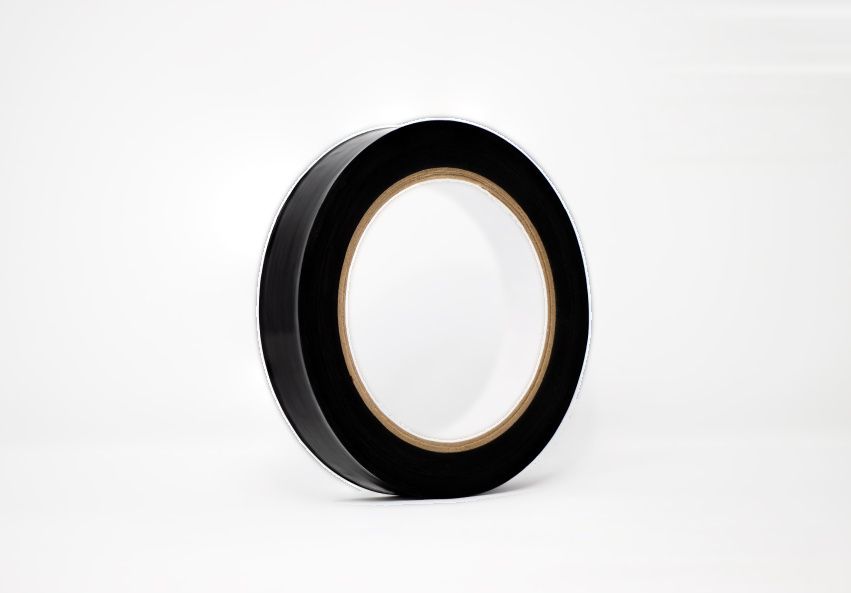

SD Tape
A thin heat-resistant tape with a high-modulus PTFE backing, silicone adhesive and a total thickness of 0.081 mm.

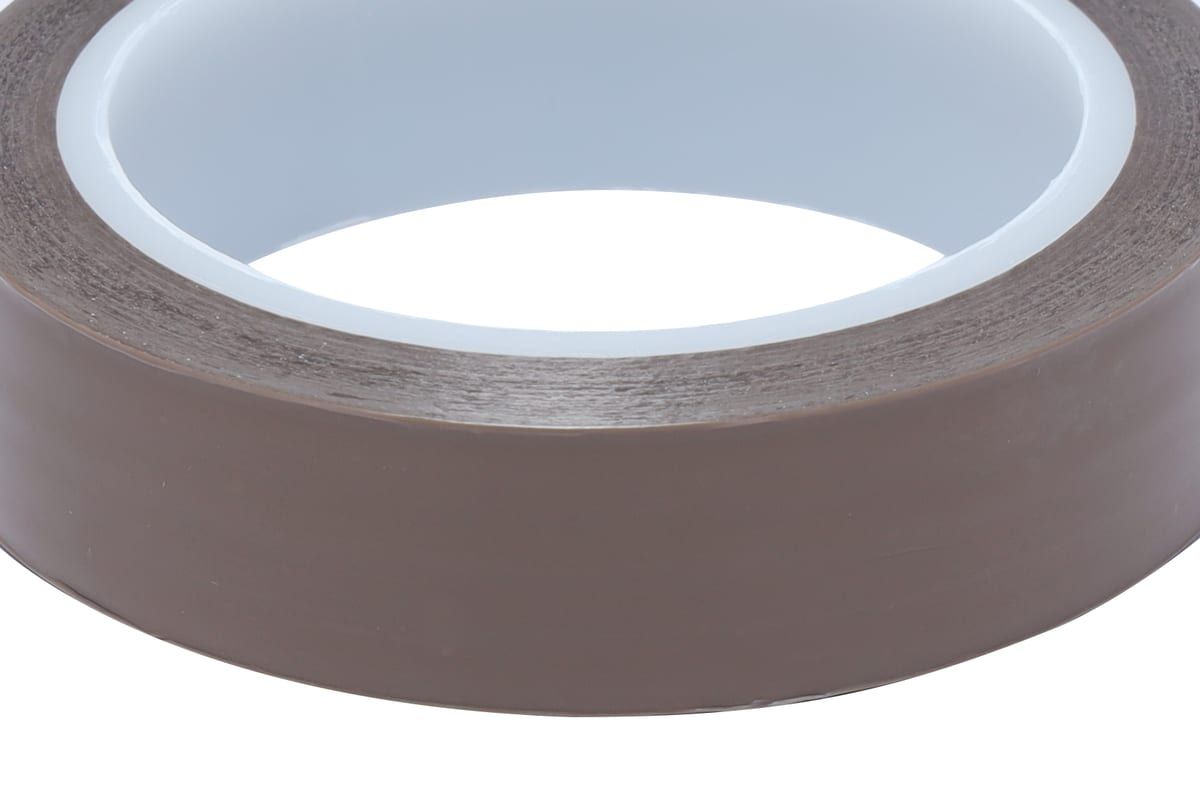

CHR 2250-2
Skived PTFE tape from Saint-Gobain. A high-modulus PTFE film with a rubber-based adhesive, combining dielectric strength with high tensile strength.
COMPARE
Compare by specification
Heat resistance and total thickness vary by part number. The value for each part number is on the product page.
| Product | Base material | Adhesive | Heat resistance | Total thickness | Standard widths | Liner | Part numbers | Compliance |
|---|---|---|---|---|---|---|---|---|
| PO Tape | UHMW | Acrylic | 107 °C | 0.114–0.584 mm | 19–889 mm | Yes | PO-3 / PO-5 / PO-10 / PO-5S / PO-10S / PO-20 | RoHS 2, REACH, Food Sanitation Act (JP) |
| SK Tape | PTFE | Acrylic | 176 °C | 0.114–0.292 mm | 19–584 mm | Yes | SK-3 / SK-5 / SK-10 | RoHS 2, REACH, Food Sanitation Act (JP) |
| RU Tape | PTFE | Acrylic | 175 °C | 0.262 mm | 19–432 mm | Yes | RUA08 | RoHS 2, REACH |
| HS Tape | PTFE-impregnated glass cloth | Silicone | 260 °C | 0.133–0.201 mm | 13–991 mm | Yes (PVC) | HS-3 / HS-5 / HS-6 | RoHS 2, REACH |
| HG Tape | PTFE-impregnated glass cloth + PTFE cast film | Silicone | 260 °C | 0.160–0.201 mm | 13–991 mm | Yes (PVC) | HG-4 / HG-6 | RoHS 2, REACH |
| HG-10S | PTFE-impregnated glass cloth + PTFE cast film | Silicone | 300 °C | 0.290 mm | 13–1000 mm | None | HG-10S | RoHS 2, REACH |
| CD Tape | PTFE-impregnated glass cloth | Silicone | 260 °C | 0.228 mm | 13–991 mm | Yes (PVC) | CD-6 | RoHS 2, REACH |
| 2975-8R | Silicone rubber + glass cloth | Silicone | 260 °C | 0.267 mm | 25–51 mm | Yes | 2975-8R | — |
| FS Sheet | PTFE-impregnated glass cloth | None | 260 °C | 0.076–0.254 mm | 13–1000 mm | None | FS-3 / FS-5 / FS-6 / FS-10 | RoHS 2 |
| SD Tape | High-modulus PTFE | Silicone | 260 °C | 0.081 mm | 19–406 mm | None | SD-2 | RoHS 2, REACH, Food Sanitation Act (JP) |
| CHR 2250-2 | High-modulus PTFE | Rubber-based | 163 °C | 0.089 mm | 13–51 mm | None | 2250-2 | RoHS 2 |
Our direct prices are often lower than those listed on online catalogue sites, and in some cases come to around half.
Compare by heat resistance
Heat resistance is a useful first condition for narrowing the choice.
Tell us where the tape will be used.
We handle quotations, orders and technical questions. You do not need to know the part number. Inquiries in English are handled by email only.
